Integrated Lithium Auxiliary Battery Kit by Cangoee – Ford Ranger Next Gen (MY23 on)

Cangoee Slimline Dual Battery Kit to suit Ford Ranger Next Gen (MY23 On)

Engineered specifically for the 2023+ Ford Ranger Next Gen, the Cangoee Slimline Dual Battery Kit delivers premium auxiliary power without compromising your valuable under-bonnet space. This complete plug-and-play solution transforms your Ranger into the ultimate adventure and work vehicle.

At the heart of the system is an integrated Battery Management System (BMS) that works seamlessly with a 20-amp dual-stage DC/DC charger and solar charging, providing up to 100 amps of continuous discharge and 100 amps of rapid charging, providing enough power to run fridges, inverters, and essential equipment with complete confidence.

Installation couldn’t be simpler. The kit utilises existing factory OEM mounting points, while the pre-configured plug-and-play wiring harness eliminates the need to cut or tap into your Ford Ranger’s factory wiring.

Why Choose Cangoee?

Cangoee Australia has been part of a group of companies designing and manufacturing sophisticated technology solutions for the Emergency Services market for over 20 years.

Cangoee’s technology and build quality have been trusted by Australia’s emergency services, including the police, ambulance, and fire services, as well as Telstra, Australia’s largest telecommunications company, which has proven their quality and performance in the most demanding environments and applications.

Cangoee has now expanded its product range into the 4WD and camping markets by releasing a fully integrated auxiliary battery kit designed as a true, complete plug-and-play solution.

One of the key advantages of the Cangoee lithium dual battery kits is the significantly reduced installation time, from the typical 10-12 hours to under 2 hours, depending on the vehicle model. This provides a cost-effective solution and saves on expensive labour costs.

Features

• Designed, engineered, and assembled here in Australia
• Proven reliability to withstand the harshest Australian conditions
• Easy Install (No drilling required, Utilises OEM mounting points, Plugs directly into factory wiring loom)
• Twice the capacity of AGM/ SLA batteries, 50% lighter than other systems
• Internal monitoring system for optimised performance
• Ignition Trigger for smart alternators
• Victron Energy Smart Shunt for battery and load monitoring (via Bluetooth)
• Robust Aluminium case
• Simultaneous charging – DC/DC and solar for fast charging
• Victron Energy  MPPT (Maximum Power Point Tracking) Solar Controller (monitoring via Bluetooth)
• Configurable DC/DC battery charger  20A
• Inverter Ready
• Bluetooth Connectivity
• Inbuilt Distribution fuse box
• ISO 9001:2015 quality standards

Power Connections

• Outlets – 1 x Accessory outlet plug, 1 x Anderson Plug
• Outlets – 6-way fuse box for versatile power distribution.
• Inlets – 1 x Anderson Plug – Red (Solar Power)

Specifications

• Battery – 110Ah Prismatic Lithium-iron phosphate cell (LiFePO4)
• Charge / Discharge – 100A discharge /100A charge
• Max Current – 120A Continuous / 200A Surge
• Battery Life – at 80% DoD – 2000 cycles
• Battery Life – at 50% DoD – 5000 cycles

Installation

• Installation Location – Behind the back seat using factory mounting points
• Installation Time – Approx 2 -3 hours
• Comprehensive Installation Guide included

Install Enquiry

• Need this item professionally installed?
• Book your installation with the Marks4WD team today.
• email: [email protected] Ph 03 9552 6555

Kit Includes

• 1 x CANS110NO20 Power Node inc. 110Ah Lithium Battery
• 1 x Integrated DC-DC battery charger with Ignition Trigger
• 1 x Victron Energy MPPT 75/15 Smart Solar Controller (Bluetooth)
• 1 x Victron Energy Smart Shunt (Bluetooth)
• 1 x Fuse holder and fuse

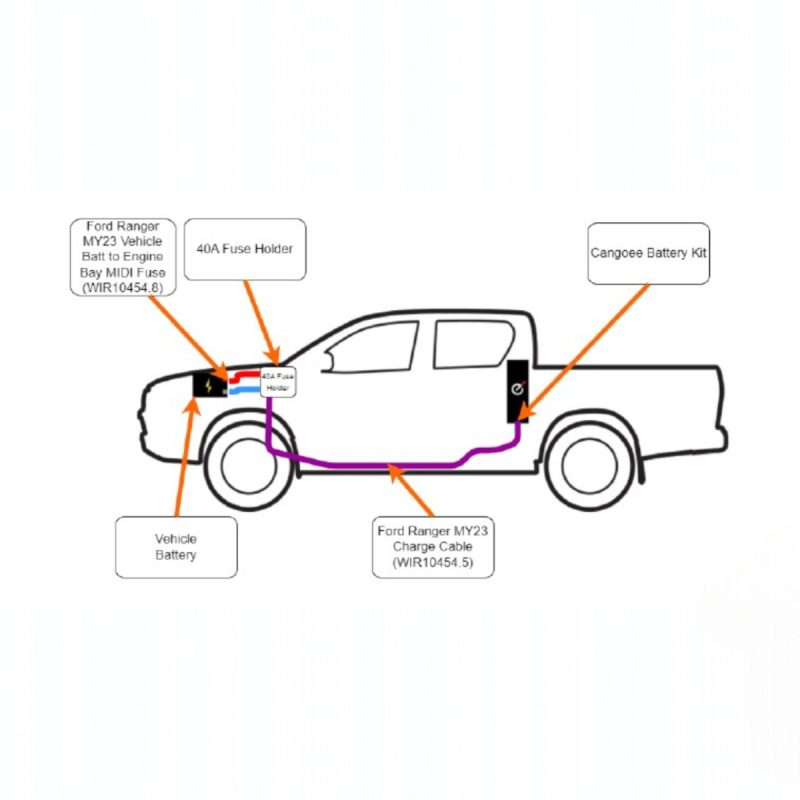

• Wiring – DC-DC Charge Cable to OEM battery, Ignition Sense Loom, Fuse to Vehicle Battery cable.
• All Brackets and Spacers
• All Fasteners (screws, washers, nutserts)

NOTES

• Kit utilises Nutserts (Rivet Nuts) for mounting
• A specialised nutsert tool is required (Refer Hire or Tool companies)
• Alternatively, refer to YouTube for alternative methods.
• If the Factory SubWoofer is installed, this will need to be relocated to allow for the battery installation.

To Suit

• Ford Ranger Next Gen (MY23 On)

Warranty

• 5-year Warranty
