ARB 4lt Aluminium Air Tank

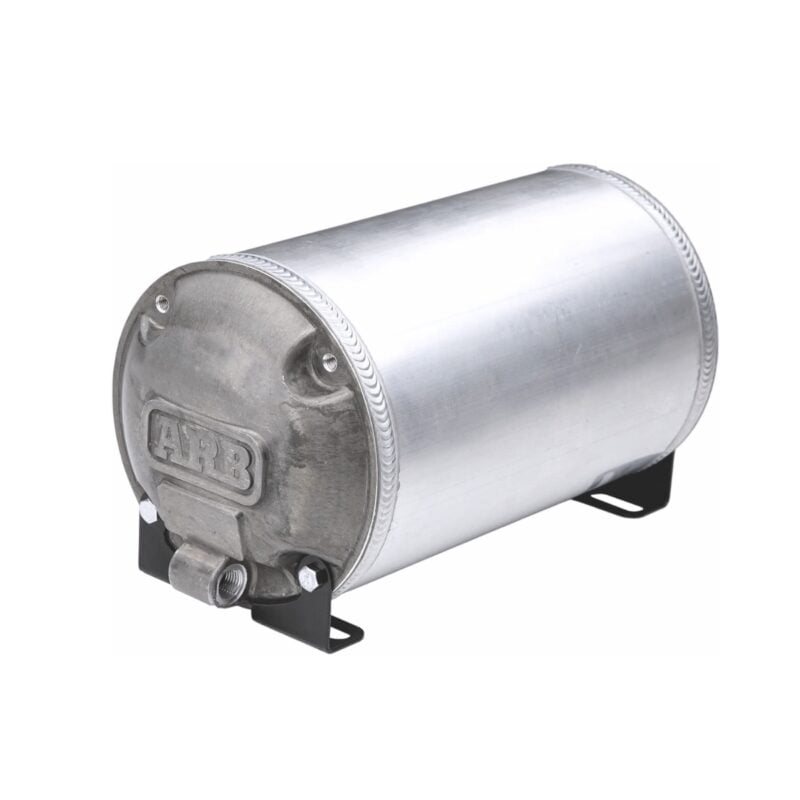

ARB 4L Aluminium Air Tank

The 4L Aluminium Air Tank delivers high-volume air output suitable for rapid tyre inflation and running most air-powered tools.

It is ideal for use with ARB’s twin motor and high output on-board compressors and is rated to a maximum working pressure of 150PSI (1030kPa).

Up to 50% lighter than an equivalent steel tank, the tank incorporates two 1/4NPT ports with JIC-4 male fittings and comes with mounting hardware for easy installation.

The tank comes with mounting hardware for easy installation.

Features

• Mountable either Horizontal or vertical
• Rated to 150 psi max working pressure
• Forged aluminium end caps tig welded with an extruded aluminium body
• Daisy chain compatible to allow fitment of multiple tanks
• 4 x 1/4″ NPT ports (user configurable) with 2x JIC-4 male fittings included
• Up to 50% lighter than an equivalent steel tank
• Minimal fluid retention due to outlets placed at the lowest point on the tank

Kit Includes

• 1 x ARB 4L Aluminium Air Tank – 171507
• 2 x Mounting brackets and feet
• 2 x 1/4npt blanking plugs
• 2 x JIC-4 fittings

Part No.

• 171507
