Ultra Vision – Behind Grille LED Light Bar – Next-Gen Ford Ranger & Everest

AUD $1,250.00 (Excl. Tax AUD $1,136.36)

In stock

To Suit

  • Ford Ranger 2022+ (Next-Gen)
  • Ford Everest (V6 version only) 2022+ (Next-Gen)
(Ships within 5 days)
Ultra Vision

Ultra Vision Behind Grille LED Light Bar Kit – Next-Gen Ford Ranger / Everest 2022+

Ultra-Vision is Australia’s No 1 Manufacturer of LED Lighting for Extreme Environments, priding ourselves on being leaders in the lighting industry and at the forefront of innovation.

The Ultra-Vision team have partnered with world-leading LED manufacturers Cree & Osram, allowing us to use Next Generation Hybrid LED & Reflector technology, giving an unmatched performance in both distance & spread – meaning the Nitro Maxx range offers the best range and width currently available in any driving Light or Light Bars including a 5-year warranty.

Our integration kit for the Ford Ranger / Everest is specially designed to enable you to incorporate Ultra Vision’s LED Light bars into your vehicle without the need to purchase a bull bar or nudge bar, without changing the factory styling of your Raptor.

This all-inclusive kit allows you to effortlessly conceal two NITRO Maxx 105W 13″ LED Light Bars on your Ranger or Everest without the need for any cutting or drilling. The mounting bracket system is ingeniously engineered to attach to existing points on the vehicle’s body, only requiring the temporary removal of the grille shroud beneath the bonnet for access.

The kit is supplied with a plug-and-play high-beam wiring connection, which directly connects to the overhead auxiliary switches.


Nitro Maxx 13″ (330mm) 105W LED Light Bar.

The Nitro Maxx 105W LED Light Bar provides unrivalled performance with a usable light distance of 1300m at 1 lux while covered by an outstanding 5-year warranty.


Hi/Lo Beam

The Nitro Maxx Hi/Lo beam enables the driver to reduce the beam power for oncoming vehicles or built-up areas while providing a wide flood light with exceptional coverage for safe driving.



Are you unsure what all the terminology means? Lux vs Lumens, Raw Lumens vs Effective Lumens output?

Find out all you need to know from our FAQs – Ultra-Vision FAQs.



  • 12,320 Raw Lumens
  • 8,865 Effective Lumens
  • 1 Lux at 1300m combined usable light
  • No cutting or drilling is required for mounting the lights or bracketry
  • Plug & Play high beam adapter – No soldering or cutting required
  • Designed and Manufactured in Australia.
  • 4mm Steel brackets
  • Powder-coated black mounting brackets
  • 5 Year Warranty on lights
  • Lifetime Warranty on all brackets
  • Contrl® Optics optimises the long-distance penetrating beam
  • Wide optic for optimum beam width



105W Nitro Light Bar Specs


Combined Usable Light – 1 Lux at 1300m

Ultra Vision LED Light Bar


Kit Includes

  • 2 x Nitro Maxx 105W 13″ LED Light Bars ( 5700K, Black Rim)
  • Vehicle-specific Ford Ranger light bar brackets
  • High-Beam Plug & Play wiring loom
  • Complete twin wiring harness including inline fuse & cabin switch
  • Mounting hardware
  • Installation Instructions
  • Part No. BGLB-FR-KIT


To Suit

  • Ford Ranger 2022+ (Next-Gen)
  • Ford Everest (V6 version only) 2022+ (Next-Gen)

    Contact Us

    Customers reviews

    There are no reviews yet.

    Only logged in customers who have purchased this product may leave a review.

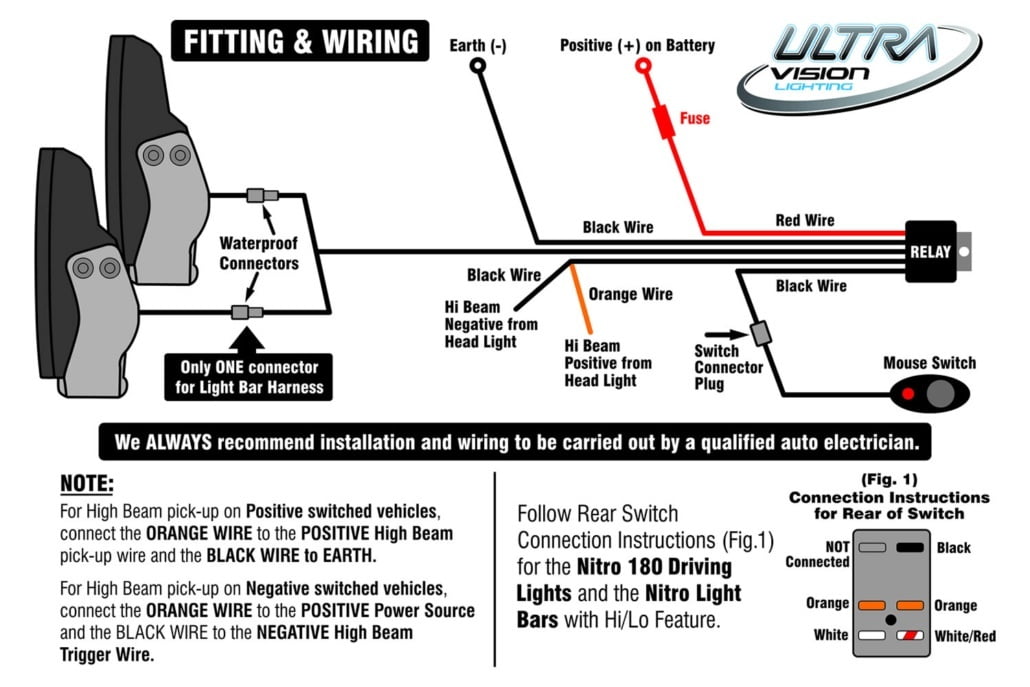

    Wiring Instructions

    Wiring Requirements
