Universal Engine Mount Kit - LS Short


Universal LS Engine Mount Kit - to suit chassis widths 54cm to 69cm

This will suit vehicles with narrow chassis such as:

  • Toyota LandCruiser 40 series
  • Jeep CJ
$375.00 $340.91

Shipping delayed 3 to 4 weeks


These sturdy weld-in engine mounts allow the installer to fine-tune the engine placement according to transmission placement or other needs. A double rubber cushion on each side provides vibration isolation at the ends of the two mounts. The rubber cushions are secured with a large 5/8” diameter bolt. The engine side mounts have slots in them so you can position the engine closer to one side of the frame as required.

Vehicle chassis widths 54cm to 69cm

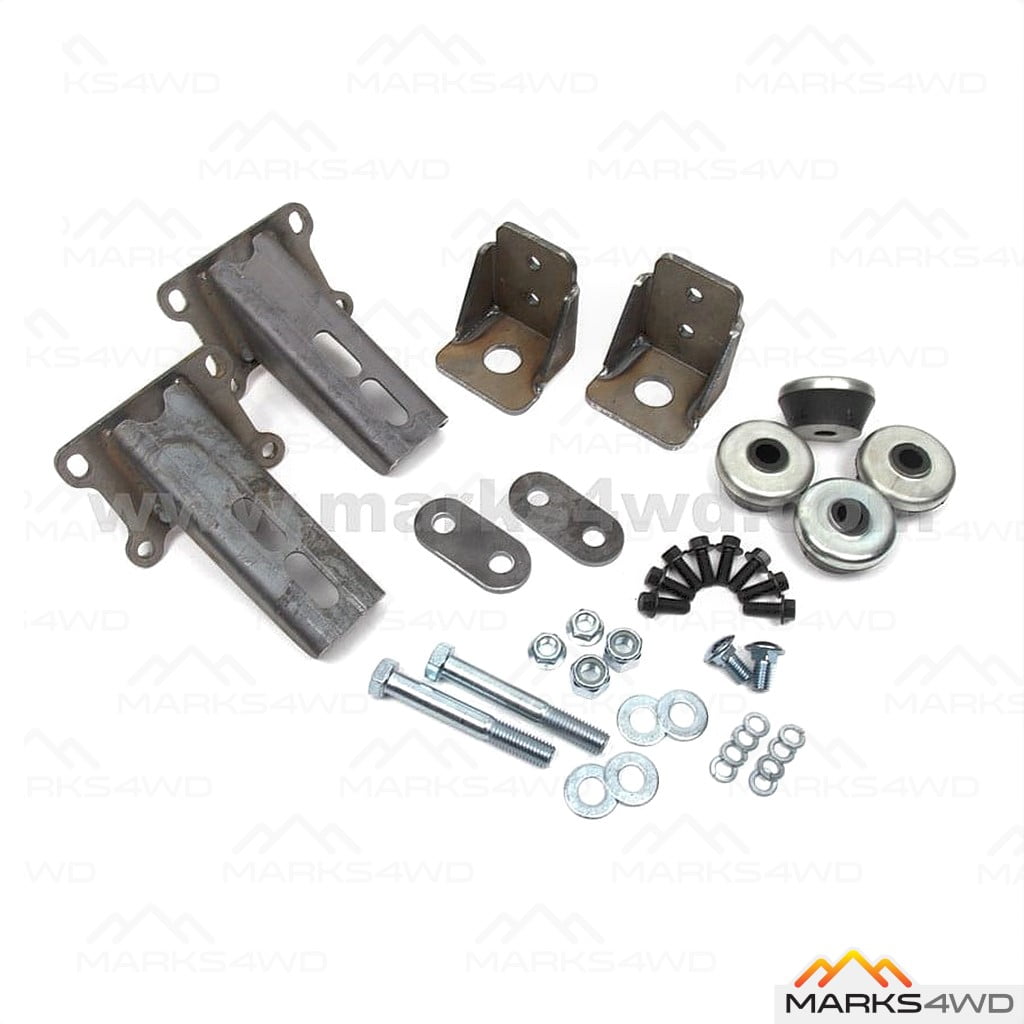

The engine mount kit includes:

  • Two engine side mounts
  • Two weld-in gusseted chassis mounts
  • Rubber mounts
  • Associated fittings

Note: These engine mounts fit the new Gen III / IV , LS-Series V8. The mounts have been designed to use with truck exhaust manifolds or rear dump headers and will interfere with car (Corvette / Camaro / Trans-Am) exhaust manifolds. We stock cast manifolds - click here
