Hilux LS V8 – 6L80E Auto Conversion Kit (2005-2015) KUN26R

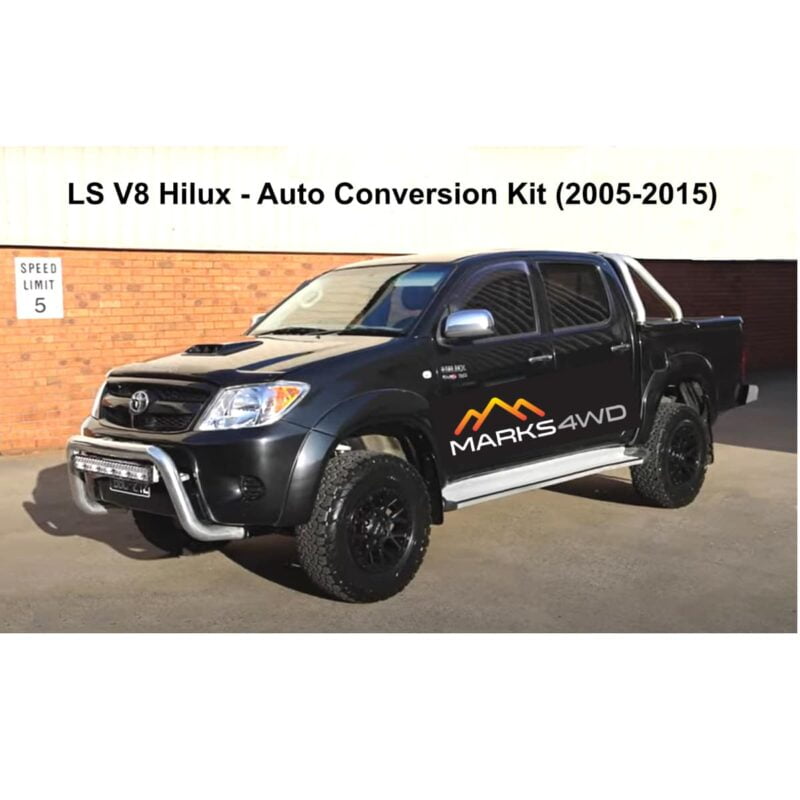

Toyota Hilux LS V8 with 6L80E Auto Conversion Kit (2005 – 2015)

Our Marks4WD Toyota Hilux LS V8 Conversion Kit combines the main components and kits into one package for your convenience.

Specifically designed to accommodate the VE LS series 6.0L/6.2L V8s with the 6-speed 6L80E automatic transmission, our kit features a custom-fabricated LS V8 sump, 6L80E auto transfer case adaptor, complete engine mount kit, front pinion diff drop, and all the necessary fasteners and fittings.

Our conversion parts are designed and manufactured in-house to meet the highest quality standards, providing the customer with the confidence of a quality fit and reliability.

The kit provides downloadable instructions and drawings to guide you through the installation process. Listed below are the optional parts we provide for your conversion, including a list of the main parts you will need to source yourself for the conversion.

Read all About our LS V8 Hilux – As Featured in Which.com.au

V8-powered HiLux built by Marks 4WD

Features

• 100% Australian Made
• Designed & Manufactured in-house at Marks4wd
• E-Coated or Zinc coated for corrosion resistance

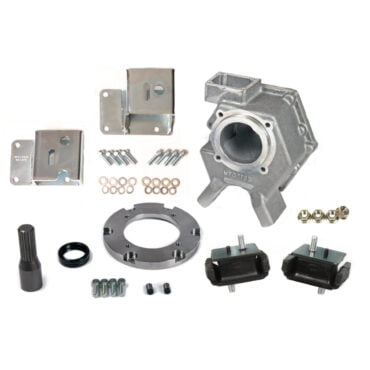

Kit Includes

• 6L80E Automatic Transfer Case Adaptor
  • Adaptor Housing
  • Coupler Shaft
  • Drive Shaft Spacer
  • Cross Member Mount
  • Bell Housing cover plate
  • Seal’s
• LS Hilux Sump
  • Steel fabricated sump
  • Windage tray
  • Dipstick & Sump plug
  • Sump Gasket
  • Oil Filter
  • Hilux IFS Front Pinion Diff Drop
• Engine Mount Kit
  • Left & Right engine mount brackets
  • 2 x Chassis mount brackets
  • 2 x Engine mount stabilizers
  • 2 x Engine mount rubbers
• Transmission Cooler Manifold Assembly
• Front Pinion Diff Drop
• Instructions and Drawings

To Suit – Toyota Hilux

• KUN26R 2005 – 2015 (IFS)
• 6.0L / 6.2L LS V8 engine (VE only)

Optional Parts

• Alternator Relocation Kit – MFK50100
• Air Conditioning Relocation Kit – MFK20171
• Hilux ECM/ECU Mount kit – MFK40421
• Hilux Fuel & Emissions kit – MFK40418
• Drive by Wire Pedal Bracket Kit – MFK40385
• Fan Shroud and Electric Fan Kit – MFK40415
• Hose Runner Bracket Kit – MFK40419
• Power Steering Pump Hose – MFK40454
• Hilux Air Box – MFG40390

Parts to be sourced by the Customer

• LS V8 engine (6.0L/6.2L) (VE only)
• 6L80E auto trans
• Engine wiring harness
• Auto Shifter (requires modification)
• VE Throttle Pedal assembly
• Power Control Module (ECM/ECU)
• Pollution Gear (Carbon canister)
• Exhaust Headers & System
• Air Conditioning Lines
• Fuel System
• Body Lift Blocks – minimum 1″ (25mm) lift (Refer to Fitting Instructions MFK40260 for further details)
